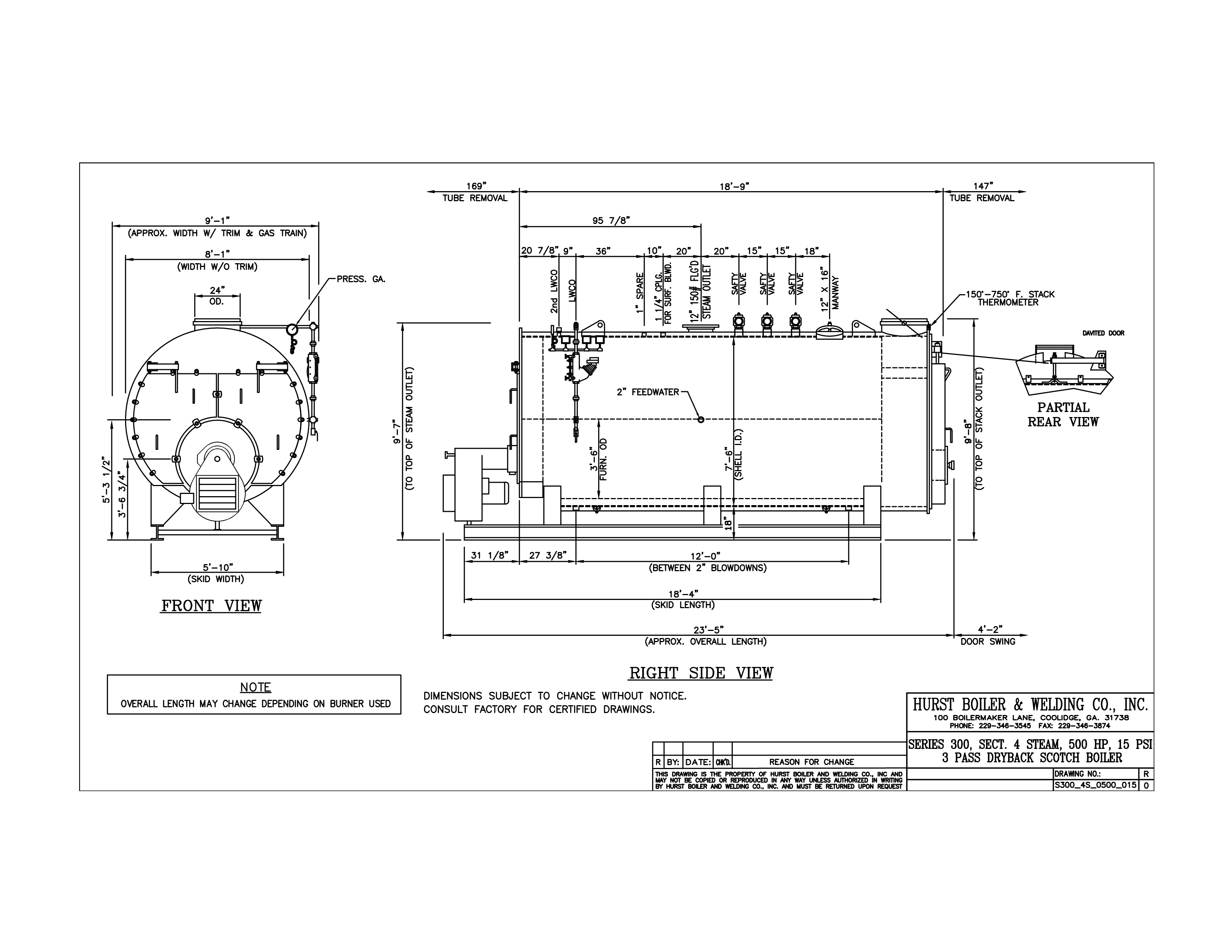

View and download select CAD files, 3D drawings and Revit models of Hurst Boiler Models.
Dimensions subject to change without notice. Certified drawings available upon request.
Do not use for construction.
| Request Quote | Quantity |
Series 300 15 PSI
| Boiler Type | Steam |
| PSI | 15 |
| Boiler Horsepower | 500 |
| Heating Surface (sq ft) | 2,500 |
| Steam Output (LBS/HR) | 17,250 |
| Gross Output (MBH) | 16,738 |
| Firing Rate Gas (1,000 BTU/CF) | 21,000.0 |
| Firing Rate LP Gas (91,500 BTU) | 229.5 |
| Firing Rate Oil #2 (140,000 BTU) | 150.0 |
| Firing Rate Oil #5 & #6 (150,000 BTU) | 140.0 |
| (A) *Note: 1 Steam Outlet Size (in) | 8.00 |
| (A) *Note: 2 Steam Outlet Size (in) | 12 |
| (B) *Note: 2 Water Supply Size (in) | 12 |
| (C) *Note: 2 Water Return Size (in) | 10.0 |
| (D) Feedwater Connection Size (in) | 2.00 |
| (E) Blowdown Connection (Btm) (High Pressure) (in) | (2)2 |
| (H) Shell Inside Diameter (in) | 90.0 |
| (G) Furnace O.D. (in) | 42.00 |
| (W) Shell to Floor Height (in) | 18.0 |
| (S) Center Line Furnace To Floor (in) | 43.130 |
| (M) Skid Length (in) | 220.0 |
| (Z) Skid To Front Plate (in) | 31.1250 |
| (J) Width Without Trim (in) | 103.000 |
| (I) Width without Trim (in) | 99.000 |
| (K) Length, Front to Rear (in) | 223 |
| (L) Length, Overall (in) | 268 |
| (Y) Door Swing (in) | 50 |
| (F) Stack Outlet Size O.D. (in) | 24 |
| (U) Supply Height (in) | 115.000 |
| (N) Skid Width (in) | 70 |
| (R) Blowdown Location (in) | 27-144 |
| (O) Steam Supply Location (in) | 100 |
| (P) Steam Supply Location (in) | 54 |
| (X) Burner Projection (in) | 43.0 |
| (AA) Tube Removal (in) | 171 |
| (BB) Tube Removal (in) | 179 |
| (T) Stack Outlet Location (in) | 201.8800 |
| (V) Stack Height (in) | 116.0000 |
| (Q) Water Return Location (in) | 162 |
| Shipping Weight - High Pressure (lbs) | 39900 |
| Shipping Weight - Low Pressure (lbs) | 38800 |
| Water Capacity at NWL (gals) | 2,300 |
| Water Capacity Flooded (w/dome) (gals) | 2,915 |
