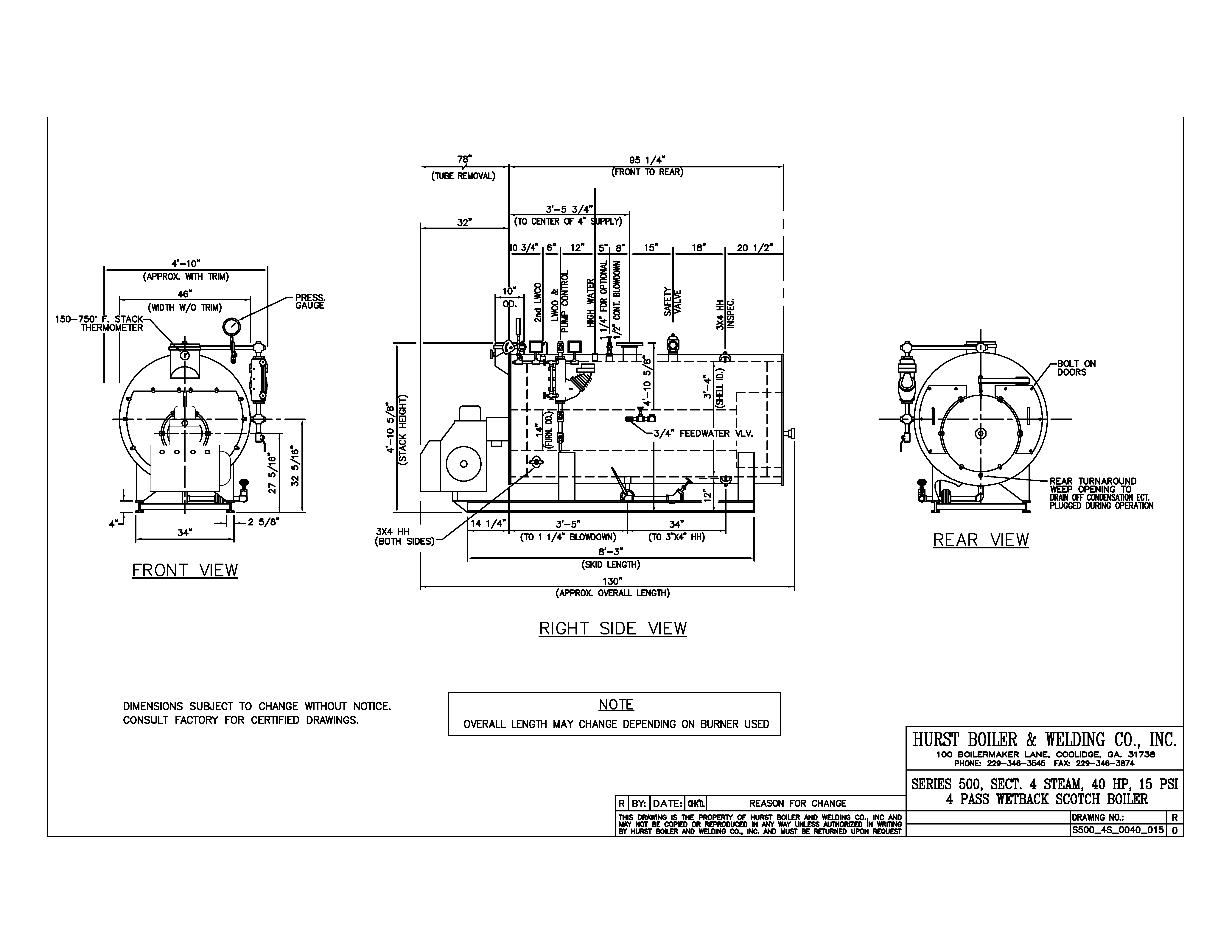

View and download select CAD files, 3D drawings and Revit models of Hurst Boiler Models.
Dimensions subject to change without notice. Certified drawings available upon request.
Do not use for construction.
| Request Quote | Quantity |

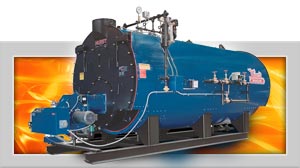

Series 500 Scotch Marine Boiler 15 PSI
| Boiler Type | Steam |
| PSI | 15 |
| Boiler Horsepower | 40 |
| Heating Surface (sq ft) | 200 |
| Steam Output (LBS/HR) | 1,380 |
| Gross Output (MBH) | 1,339 |
| Firing Rate Gas (1,000 BTU/CF) | 1,680.0 |
| Firing Rate LP Gas (91,500 BTU) | 18.4 |
| Firing Rate Oil #2 (140,000 BTU) | 12.0 |
| Firing Rate Oil #5 & #6 (150,000 BTU) | 11.2 |
| (A) *Note: 2 Steam Outlet Size (in) | 4 |
| (B) *Note: 2 Water Supply Size (in) | 4 |
| (C) *Note: 2 Water Return Size (in) | 4.0 |
| (D) Feedwater Connection Size (in) | 0.75 |
| (E) Blowdown Connection (Btm) (High Pressure) (in) | 1.25 |
| (E) Blowdown Connection (Btm) (Low Pressure & Hw) (in) | 1.25 |
| (H) Shell Inside Diameter (in) | 40.0 |
| (G) Furnace O.D. (in) | 14.00 |
| (N) Shell To Floor (in) | 12.0 |
| (P) Stack Outlet Height (in) | 58.630 |
| (O) Skid Length (in) | 99.0 |
| (M) Skid To Front Plate (in) | 14.2500 |
| (J) Width Without Trim (in) | 46.000 |
| (K) Width With Standard Trim (in) | 58.00 |
| (F) Stack Outlet Size O.D. (in) | 10 |
| (I) Supply Height (in) | 55.375 |
| (L) Skid Width (in) | 34 |
| (Q) Blowdown Location (in) | 41 |
| (R) Steam Outlet Location (in) | 41.7500 |
| (S) Supply Location (in) | 20.2500 |
| (T) Return Location (in) | 74.250 |
| (U) Burner Projection (in) | 35.0 |
| (V) Tube Removal (in) | 85 |
| (X) Approx. Overall Length (in) | 130.000 |
| (Y) Center Line Of Furnace (in) | 27.3100 |
| (Y) Second Blowdown Connection (in) | NA |
| Approximate Shipping Weight (lbs) | 4100 |
| Water Capacity-Steam (gals) | 272 |
| Water Capacity-Water (gals) | 320 |
