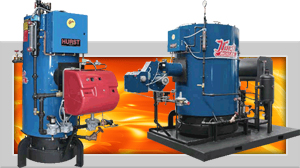

VIX Series Vertical Boiler 15 PSI
| Boiler Type | Steam |
| PSI | 150 |
| Boiler Horsepower | 80 |
| Steam Output (LBS/HR) | 2,760 |
| Gross Output (MBH) | 2,678 |
| Input BTU Req''d (BTUX1000) | 3,348 |
| Firing Rate Gas (1,000 BTU/CF) | 3,348.0 |
| Firing Rate LP Gas (91,500 BTU) | 36.6 |
| Firing Rate Oil #2 (140,000 BTU) | 23.9 |
| (C) Feedwater Connection Size (in) | 1.00 |
| (B) Blowdown Connection (Btm) (High Pressure) (in) | 1 |
| (K) Furnace O.D. (in) | 36.00 |
| (D) Stack Outside Dia. (in) | 14 |
| (F) Width without Trim (in) | 54.250 |
| (G) Width with Trim (in) | 60.00 |
| (E) Stack Height (in) | 87.0625 |
| (H) Overall Height (in) | 115.000 |
| (A) Steam Outlet (High Press.) (in) | 2.50 |
| (I) Height Without Trim (in) | 100 |
| (J) Length (in) | 98 |
| (A) Hot Water Supply Outlet (in) | 6 |
| (C) Hot Water Return (in) | 4 |
| (L) Support Width (in) | 54.25 |
| (M) Support Length (in) | 63.00 |
| (N) Support To Center Line (in) | 26.380 |
| Fireside Heating Surface (in) | 151 |
| Approximate Shipping Weight (lbs) | 5094 |
| Water Capacity-Steam (gals) | 167 |
| Water Capacity-Water (gals) | 232 |
| Water Capacity at NWL (gals) | 167 |
| Water Capacity Flooded (w/dome) (gals) | 232 |
| Furnace Volume (CU FT.) | 33.0 |
